KS-CPE653 long range 5.8G outdoor PTP/PTMP in Wi-Fi6 standard.IPQ5018 Qualcomm chipset, the wireless speed is up to 2400Mbps
Product Description
KS-CPE653 is an long range 5.8G outdoor PTP/PTMP in Wi-Fi6 standard.
IPQ5018 Qualcomm chipset, the wireless speed is up to 2400Mbps;
High power design plus 13dBi high gain antenna, the wireless range is up to 5KM distance;
Equipped with Gigabit RJ45 port, support 24V PoE, powered by 100 meters LAN cable, IP65 water-proof and lightning protection, it can be installed any place to transmit the long range and high speed data.
Managed by AP cloud, simply to remote access the WEB GUI. It is easy to manage the wireless AP in rural area, maintenance cost-saving always.

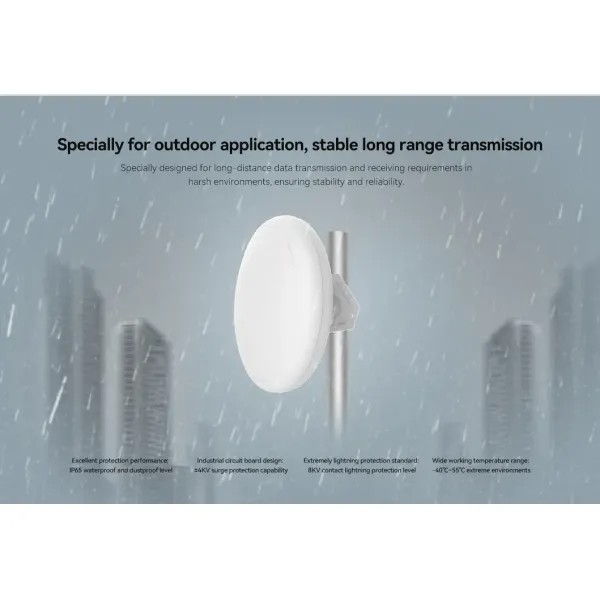

Detailed Photos
Product Parameters
| Hardware Spec: |
| Model |
KS-CPE653 |
| WiFi Standard |
IEEE 802.11b/g/n/ac/ax |
| CPU |
IPQ5018 + QCN6102+QCA8337 |
| Flash |
8MB_SPI_NOR Flash+128MB_SPI_L NAND Flash |
| Memory |
512MB (It will be 256MB in the future) |
| Frequency |
5.8G: 5150 - 5850MHz |
| Data Rate |
2400Mbps @5.8GHz |
| RF Power |
5.8G: 11n≤27 dBm/chain; 11ac≤23 dBm/chain; 11ax≤18 dBm/chain; |
| Ethernet |
1*1G LAN port, RJ-45; |
| 1*1G WAN, PoE Input,RJ-45; |
| Button |
Reset button |
| Operation mode button |
| Interface |
DC 12V/1.5A |
| Operation mode switch |
AP/Repeater |
| LED Indicator |
SYS (Red) |
| 5.8G(Blue) |
| Antenna |
13dBi panel antenna |
| Power Consumption |
<13W |
| Power Supply |
PoE, 24V passive PoE |
| Surge |
Comm mode: ±4KV; Differental mode: ±2KV |
| ESD |
Air: 15KV, Contact: 8KV |
| Water-Proof |
IP65 protection level |
| Working temperature |
Working Temperature:-40ºC~55ºC |
| Storage temperature: -40ºC~70ºC |
| Humidity |
5%~95% |
| Size |
200*54.8cm |
| Firmware Features |
| Operation mode |
AP, repeater, WDS |
| Security |
Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
| IP Protocol |
IPv4/IPv6 |
| Device Management |
GUI web management and cloud management |
| Support firmware back-up, restore, reset, upgrade |
Packing List
|
KS-CPE653*1
13dBi panel antenna*1
Cat 6 LAN Cable×1(1 meter)
User Manual×1
|
