Wireless Router/Poe Output Router Support mesh, IPv6, Guest Network
Product Description
M18 is an high stability wireless mesh router support mobile APP management and easy mesh; Comply to Wi-Fi6 standard, 2.4G+5.8G dual band concurrent, 1800Mbps high speed for more users; Support WPS switch connection, slave nodes easy to connect to the master node by press the WPS switch, realize seamless wireless coverage to every corner in home, villa, bigger house, small office;

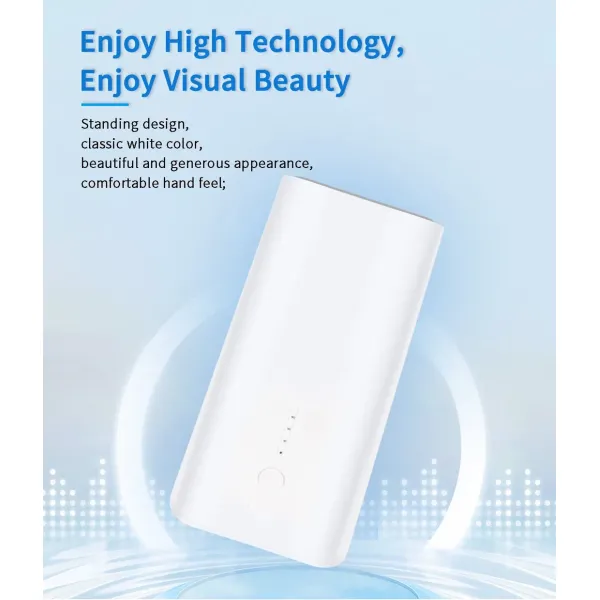

1. Vertical structure design, simplicity white color, easy to install, ingenious integrated into any decoration house, villa or office;
2. Support WPS switch connection, No configuration, slave nodes automatically pairing with master node; Enjoy high speed wireless connection even no networking skills.
3. Support 802.11kvr seamless roaming, users automatically switch to high stability signal but no Wi-Fi dropping
4. Support Watchdog hardware protection, WPA3 and 802.1x advance encryption, guard wireless network security all the time
5. Support mobile APP, view and manage the wireless network anytime and anywhere
6. Strong technical support in customer firmware development
Product Parameters
| Hardware Spec: |
| Model |
M18 |
| WiFi Standard |
IEEE 802.11b/g/n/ac/ax |
| CPU |
MT7621DAT+MT7905N+MT7975DN |
| Flash |
16MB |
| Memory |
128MB DDR3 |
| Frequency |
2.4G: 2400 - 2484MHz |
| 5.8G: 5150 - 5850MHz |
| Data Rate |
600Mbps @ 2.4GHz; 1200Mbps @5.8GHz |
| RF Power |
≤ 21dBm |
| Access Users |
100+ Clients |
| Ethernet |
1*10/100/1000Mbps WAN |
| 2* 10/100/1000Mbps LAN |
| Button |
Reset button |
| MESH Button |
| Switch |
MESH+ LED Switch |
| LED Indicator |
MESH+ Working Status (breathing light) |
| 2.4G Wi-Fi |
| 5.8G Wi-Fi |
| System Status |
| Power Status |
| Antenna |
Build in 5dBi MIMO Antenna |
| Power Consumption |
<15W |
| DC Power Supply |
12V/1.5A |
| MTBF |
≥525,600H |
| Working temperature |
Working Temperature:-20ºC~55ºC |
| Storage temperature: -30ºC~70ºC |
| Humidity |
5%~95% |
| Dimensions |
108mmX108mmX216mm |
| Firmware Features |
| Operation mode |
Router/Mesh |
| Wireless Functions |
Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
| Support SSID hidden |
| Support seamless roaming, 802.11kvr standard. |
| Support 5G Prior for a faster Ethernet. |
| Support MAC filter |
| Support parental control to limited the online time and Children behavior. |
| Support client isolation to improve the wireless stability |
| VPN |
VPN Passthrough and VPN Client (L2TP PPTP) |
| Security |
Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
| Easy Mesh |
Support easy mesh and WPS connection, complete the mesh WiFi connection no GUI configure |
| TR069 |
Support |
| IP Protocol |
IPv4/IPv6 |
| Device Management |
Mobile APP Control |
| GUI web management |
| Support firmware back-up, restore, reset, upgrade |
Packing List
|
M18*1
Power adapter×1(12V1.5A)
Cat 6 LAN Cable×1(1 meter)
User Manual×1
|
Detailed Photos
Packaging & Shipping
12PCS/CTN
Weight: 7.4KGS/CTN
CTN size: 59*50*23cm
Suggest to ship by sea
After Sales Service
Q1. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;
ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.
Q2. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.
