outdoor wifi access point with Qualcomm Chipset, 2.4G+5.8g 3000Mbps cloud wireless AP
Product Description

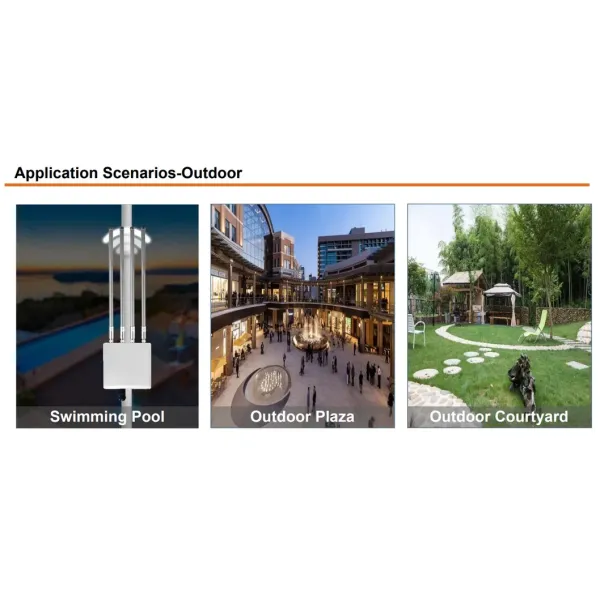

KS-FAP625 is high RF power, high speed, high performance Wi-Fi6 outdoor wireless access point with SFP fiber port; With IP65 outdoor shell, Qualcomm IPQ5018 enterprise chipset, 2.4G+5.8G dual band, 3000Mbps data rate, support 802.1kvr seamless roaming, can access into 150+ users. With cloud central management system, it is high stability equipment for outdoor wireless coverage in sandy beach, scenic spot, park, playground ect...
Main Features:
Outdoor plastic+metal shell, IP65 protection level, can be installed in any harsh environment.
High performance enterprise CPU, world-wide branded electronic IC, allow 150+ users to access, performance better as the high quality.
The wireless data rate up to 3000Mbps, support 48V active PoE, so easy apply to various network environments to achieve fiber to wireless signal.
Support 802.11kvr seamless roaming, users automatically switch to high stability signal but no Wi-Fi dropping
Support WPA3 and 802.1x advance encryption, guard wireless network security all the time
Strong technical support, including customer LOGO or customer firmware development.
Detailed Photos
Product Parameters
| Hardware Spec: |
| Model |
KS-FAP625 |
| WiFi Standard |
IEEE 802.11b/g/n/ac/ax |
| CPU |
IPQ5018 |
| Flash |
8MB_SPI_NOR Flash+128MB_SPI_L NAND Flash |
| Memory |
512MB |
| Frequency |
2.4G: 2400 - 2484MHz |
| 5.8G: 5150 - 5850MHz |
| Data Rate |
600Mbps @ 2.4GHz; 2400Mbps @5.8GHz |
| RF Power |
2.4G 11b≥27dBm/chain, 11n HT20≥24dBm/chain, 11ac HT40≥23dBm/chain, 11ax HT40≥17dBm/chain
5.8G 11n≥26 dBm/chain; 11ac≥23 dBm/chain; 11ax≥18 dBm/chain; |
| Access Users |
150+ Clients |
| Ethernet |
1*SFP port |
| 1*RJ45 port, support 802.3at PoE |
| Button |
Reset button |
| Antenna |
External detachable 6dBi antenna |
| Power Consumption |
<23W |
| Power Supply |
PoE, IEEE 802.3at standard |
| Water-Proof |
IP65 protection level |
| MTBF |
≥85000H@25ºC |
| Working temperature |
Working Temperature:-20ºC~55ºC |
| Storage temperature: -40ºC~70ºC |
| Humidity |
5%~95% |
| Firmware Features |
| Operation mode |
AP and router |
| Wireless Functions |
Multiple SSID functions: 2.4GHz: 8; 5.8GHz: 8. |
| Support 160MHz bandwidth |
| Support seamless roaming, 802.11kvr standard. |
| Support 5.8G Prior for a faster Ethernet. |
| Support MAC filter |
| Support client isolation to improve the wireless stability |
| VPN |
Support PPTP, L2TP and OpenVPN if work with AC controller |
| Security |
Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
| IP Protocol |
IPv4/IPv6 |
| Device Management |
GUI web management |
| Support firmware back-up, restore, reset, upgrade |
Packing List
|
KS-FAP625*1
6dBi omni antenna*4
Cat 6 LAN Cable×1(1 meter)
User Manual×1
|
Packaging & Shipping
Carton box: 53.5*59*51cm;
10PCS/CTN
After Sales Service
2 years warranty
FAQ
Q1. What's kind of operation mode it support:
A: AP, mesh and router, can use it in any environment to provide stable wireless signal;
Q2. If work with AP controller:
A: Yes, worked with AP controller in MQTT protocol;
The AP controller can be gateway or AP controller bypass mode;
After work with AP controller, it support AP central management,AP group management, multiple authentications like SMS, email, account auth, radius auth, facebook auth..., can generate the working diagram automatically.
We can send you the AP controller's remote control link, you can login and check the functions before samples purchase;
Q3. If work with cloud:
A. Yes, worked with cloud management, support AP configure, AP group configure, AP location configure...
What's more, can support SDN if want;
Can send you the cloud and AP's remote control link, you can login to check the AP's web interface and cloud function in advance before samples purchase;
Q4. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.
Q5. What's the OEM and ODM service?
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;
ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.
